Spherical & Conical Seat Washers
DIN 6319 spherical washers (C) and conical seat washers (D/G) for compensating angular misalignment in bolted joints.
Variants 3
Size entries 35
Spherical Washer — Low Carbon Steel
DIN 6319 CLow Carbon Steel
| For Screw | d min-max | D min-max | s min-max | h1 min-max | r1 min-max | Static Load max. kN | Kg/1000 | Std Pkg |
|---|---|---|---|---|---|---|---|---|
| M 6.0 | 6.40-6.62 | 11.80-12.20 | 2.20-2.40 | 0.60-0.80 | 8.80-9.20 | 9 | 0.95 | 1.000 |
| M 8.0 | 8.40-8.62 | 16.80-17.20 | 3.10-3.30 | 0.50-0.70 | 11.80-12.20 | 17 | 2.6 | 1.000 |
| M 10.0 | 10.50-10.77 | 20.80-21.20 | 3.90-4.10 | 0.70-0.90 | 14.80-15.20 | 26 | 4.9 | 500 |
| M 12.0 | 13.00-13.27 | 23.80-24.20 | 4.50-4.70 | 1.00-1.20 | 16.80-17.20 | 38 | 7.4 | 250 |
| M 14.0 | 15.00-15.27 | 27.80-28.20 | 4.90-5.10 | 1.10-1.30 | 21.80-22.20 | 53 | 10.8 | 200 |
| M 16.0 | 17.00-17.33 | 29.80-30.20 | 5.20-5.40 | 1.20-1.40 | 21.80-22.20 | 73 | 12.7 | 100 |
| M 20.0 | 21.00-21.33 | 35.70-36.30 | 6.10-6.50 | 1.90-2.10 | 26.80-27.20 | 117 | 22.5 | 50 |
| M 24.0 | 25.00-25.33 | 43.70-44.30 | 8.00-8.40 | 2.30-2.50 | 31.70-32.30 | 168 | 44.6 | 50 |
| M 30.0 | 31.00-31.39 | 55.70-56.30 | 11.00-11.40 | 3.50-3.70 | 40.70-41.30 | 269 | 98 | 20 |
| M 36.0 | 37.00-37.39 | 67.70-68.30 | 13.80-14.20 | 4.50-4.70 | 49.70-50.30 | 394 | 190 | 20 |
| M 42.0 | 43.00-43.39 | 77.70-78.30 | 16.80-17.20 | 6.30-6.70 | 57.70-58.30 | 542 | 310 | 10 |
| M 48.0 | 50.00-50.46 | 91.70-92.30 | 20.80-21.20 | 7.80-8.20 | 66.70-67.30 | 714 | 540 | 3 |

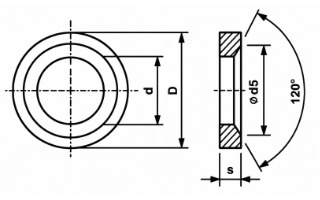

Conical Seat — Low Carbon Steel
DIN 6319 DLow Carbon Steel
| For Screw | d min-max | D min-max | s min-max | d5 min-max | Static Load max. kN | Kg/1000 | Std Pkg |
|---|---|---|---|---|---|---|---|
| M 6.0 | 7.10-7.32 | 11.80-12.20 | 2.70-2.90 | 10.80-11.20 | 9 | 1.4 | 1.000 |
| M 8.0 | 9.60-9.82 | 16.80-17.20 | 3.40-3.60 | 14.30-14.70 | 17 | 3.8 | 500 |
| M 10.0 | 12.00-12.27 | 20.80-21.20 | 4.10-4.30 | 18.30-18.70 | 26 | 6.5 | 500 |
| M 12.0 | 14.20-14.47 | 23.80-24.20 | 4.90-5.10 | 19.80-20.20 | 38 | 10.6 | 250 |
| M 14.0 | 16.50-16.77 | 27.80-28.20 | 5.50-5.70 | 24.60-25.00 | 53 | 15.5 | 200 |
| M 16.0 | 19.00-19.33 | 29.80-30.20 | 6.10-6.30 | 25.80-26.20 | 73 | 18.7 | 100 |
| M 20.0 | 23.20-23.53 | 35.70-36.30 | 7.30-7.70 | 30.70-31.30 | 117 | 32 | 50 |
| M 24.0 | 28.00-28.33 | 43.70-44.30 | 9.30-9.70 | 36.70-37.30 | 168 | 63 | 50 |
| M 30.0 | 35.00-35.39 | 55.70-56.30 | 11.80-12.20 | 48.70-49.30 | 269 | 130 | 25 |
| M 36.0 | 42.00-42.39 | 67.70-68.30 | 14.80-15.20 | 59.70-60.30 | 394 | 236 | 20 |
| M 42.0 | 49.00-49.39 | 77.70-78.30 | 17.80-18.20 | 69.70-70.30 | 542 | 365 | 10 |
| M 48.0 | 56.00-56.46 | 91.70-92.30 | 21.80-22.20 | 81.70-82.30 | 714 | 643 | 3 |
Conical Seat Large — Carbon Steel
DIN 6319 GCarbon Steel
| For Screw | d min-max | D min-max | s min-max | d5 min-max | Static Load max. kN | Kg/1000 | Std Pkg |
|---|---|---|---|---|---|---|---|
| M 6.0 | 7.10-7.32 | 16.80-17.20 | 3.90-4.10 | 10.80-11.20 | 9 | 5.6 | 1.000 |
| M 8.0 | 9.60-9.82 | 23.80-24.20 | 4.90-5.10 | 14.30-14.70 | 17 | 14 | 500 |
| M 10.0 | 12.00-12.27 | 29.80-30.20 | 4.90-5.10 | 18.30-18.70 | 26 | 21 | 500 |
| M 12.0 | 14.20-14.47 | 35.70-36.30 | 5.90-6.10 | 19.80-20.20 | 38 | 38 | 250 |
| M 14.0 | 16.50-16.77 | 39.70-40.30 | 5.90-6.10 | 24.60-25.00 | 53 | 47 | 200 |
| M 16.0 | 19.00-19.33 | 43.70-44.30 | 6.80-7.20 | 25.80-26.20 | 73 | 68 | 100 |
| M 20.0 | 23.20-23.53 | 49.70-50.30 | 7.80-8.20 | 30.70-31.30 | 117 | 94 | 50 |
| M 24.0 | 28.00-28.33 | 59.70-60.30 | 9.80-10.20 | 36.70-37.30 | 168 | 169 | 50 |
| M 30.0 | 35.00-35.39 | 67.70-68.30 | 11.80-12.20 | 48.70-49.30 | 269 | 237 | 25 |
